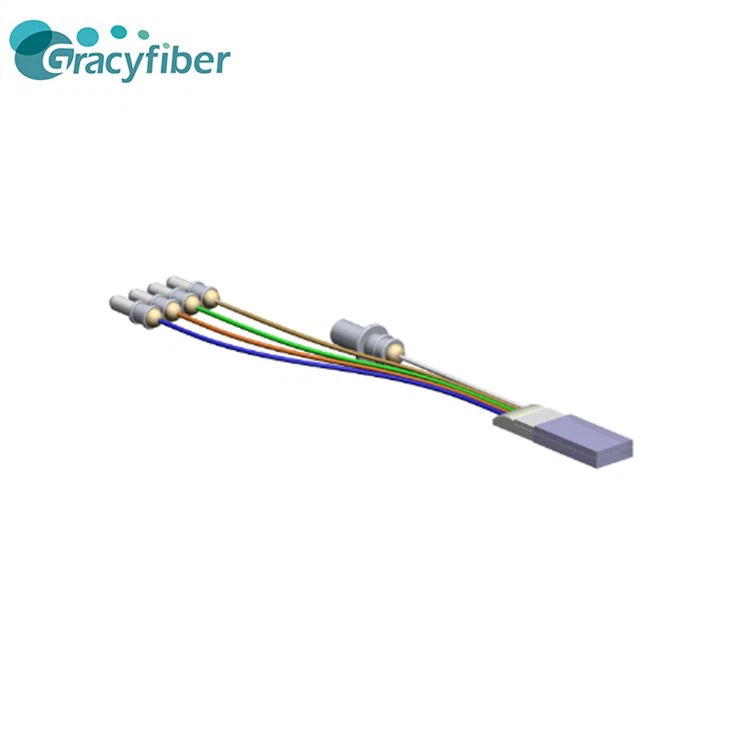

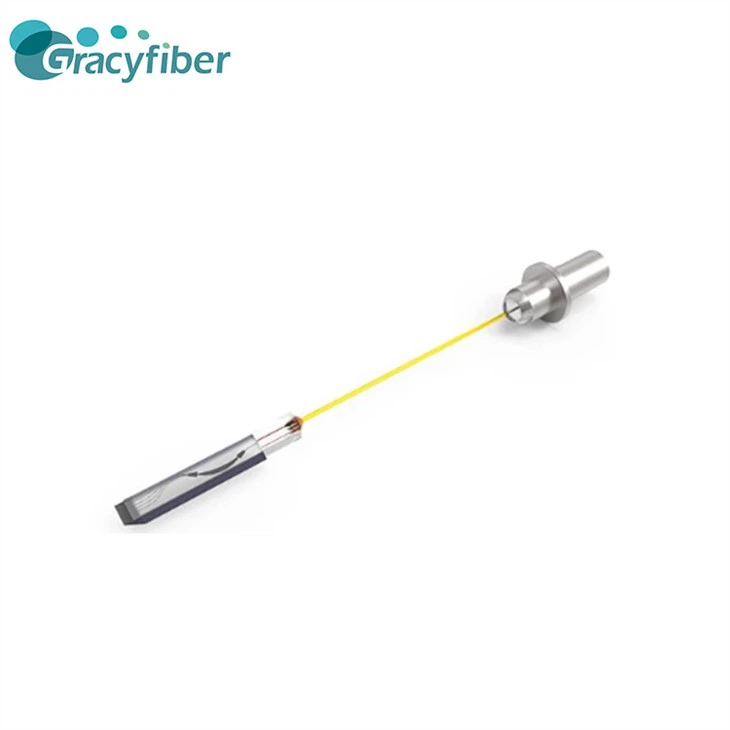

Active 4-Channel CWDM AWG Multiplexer Module

The active 4-channel CWDM AWG multiplexer module is an optical device that can combine multiple signals into one optical fiber for transmission, and can also separate multiple signals in one optical fiber to achieve multiplexing and demultiplexing functions. Among them, active means that the module has a built-in amplifier, which can enhance the strength of the signal; 4 channels means that the module supports 4 different optical signal channels; CWDM means that the module adopts wavelength division multiplexing technology, which can separate optical signals of different wavelengths and transmit.

AWG stands for Arrayed Waveguide Grating, which is one of the core technologies of this module and can achieve high channel isolation and low insertion loss. This module is usually used as an important part of the optical transmission network to improve the utilization rate and transmission efficiency of optical fiber, and is widely used in communication, radio and television, data centers and other fields.

1. High channel isolation: This product adopts AWG technology, which can achieve a channel isolation of up to 40dB, effectively avoiding mutual interference between optical signals, and improving signal transmission quality and stability.

2. Low insertion loss: The insertion loss of this product is lower than 3dB, which can ensure the quality and stability of signal transmission and reduce the cost of optical fiber transmission.

3. Multi-signal multiplexing: This product supports multiplexing of signals of 4 different wavelengths, and can combine multiple signals into one optical fiber for transmission, improving fiber utilization and transmission efficiency.

4. Built-in amplifier: The product has a built-in amplifier, which can enhance the strength of the signal, improve the signal transmission distance and reliability.

5. Various optical fiber interfaces: This product supports various optical fiber interfaces, including SC/APC, SC/PC, and LC, etc., and can adapt to different optical fiber connection requirements.

6. High flexibility: The product supports a variety of drive methods, including voltage drive and current drive, etc., and can adapt to different application scenarios and equipment requirements.

7. High reliability: The product uses high-quality optical devices and materials, which can ensure the long-term stability and reliability of the equipment and reduce equipment maintenance costs.

1. Optical communication: This product is widely used in the field of optical communication. It can realize the multiplexing and demultiplexing of multiple optical signals, reduce the cost of optical fiber, and improve the utilization rate and transmission efficiency of optical fiber.

2. Broadcast TV: This product can realize the multiplexing and demultiplexing of multiple broadcast TV signals, improve the transmission efficiency and quality of broadcast TV signals, and reduce transmission costs.

3. Data center: This product can realize the multiplexing and demultiplexing of multiple data signals, improve the efficiency and quality of data transmission, and reduce the cost of data transmission.

4. Medical and health: This product can be applied in the medical and health field to realize multiplexing and demultiplexing of multiple medical signals, improve the transmission efficiency and quality of medical signals, and reduce transmission costs.

5. Industrial control: This product can be used in the field of industrial control to realize multiplexing and demultiplexing of multiple control signals, improve the transmission efficiency and quality of control signals, and reduce transmission costs.

1. Connect the four optical fibers to the four optical fiber ports of the module respectively, making sure that the connections are firm and free of damage.

2. Turn on the power of the module, and proceed to the next step after the indicator light shows a normal state.

3. According to actual needs, set the wavelength of the module (usually 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm, etc.), to ensure that it matches the wavelength of other devices.

4. Set the drive mode of the module (usually voltage drive or current drive) according to actual needs to ensure that it matches the drive mode of other devices.

5. According to actual needs, set the power of the built-in amplifier of the module to ensure that the signal strength is moderate and stable.

6. After completing the above settings, you can start to transmit signals, realize multiplexing and demultiplexing of multiple signals, improve signal transmission efficiency and quality, and reduce transmission costs.

1. Precautions for optical fiber connection: When connecting optical fibers, ensure that the optical fiber is inserted in the correct direction to avoid reverse or crooked insertion. At the same time, pay attention to the quality and damage of the optical fiber to avoid affecting the quality of signal transmission.

2. Precautions for power supply connection: When connecting the power supply, ensure that the voltage and frequency of the power supply are consistent with the identification of the module, to avoid unstable power supply or excessive voltage, which will affect the normal use of the equipment.

3. Precautions for wavelength setting: When setting the wavelength, select the appropriate wavelength according to the actual needs to avoid conflict or mismatch with the wavelength of other devices, which will affect the quality of signal transmission.

4. Precautions for setting the driving mode: When setting the driving mode, select the appropriate driving mode according to the actual needs, so as to avoid conflicts or mismatches with the driving modes of other devices, which will affect the normal use of the device.

5. Precautions for amplifier power setting: When setting the amplifier power, select the appropriate power according to the actual needs, so as to avoid the amplifier power being too high or too low, which will affect the signal transmission quality and the normal use of the equipment.

6. Precautions for temperature environment: When using this product, pay attention to the control of ambient temperature and humidity to avoid the impact of excessively high or low temperature and humidity on the equipment and affect the normal service life of the equipment.
