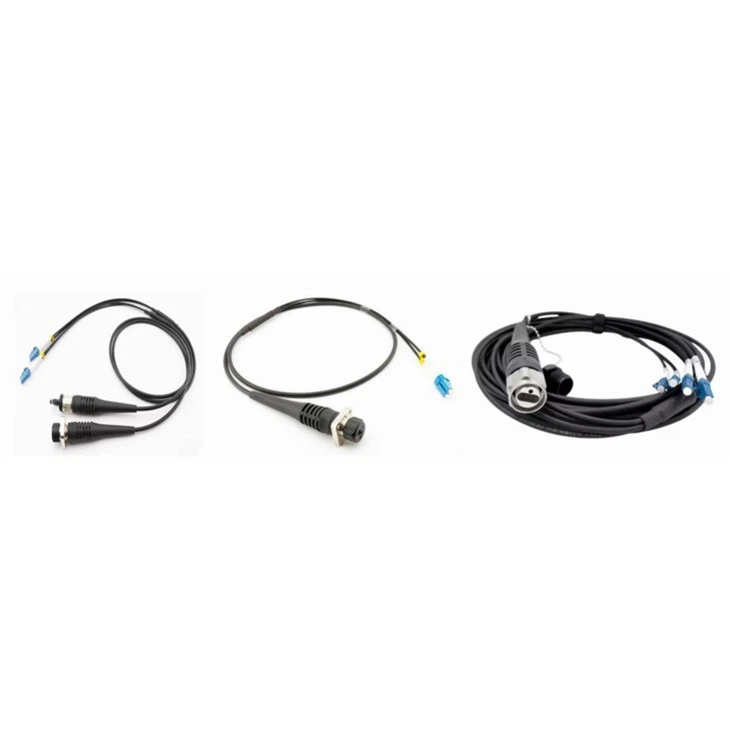

Outdoor CPRI Armored Fiber Patch Cable

The widespread application of fiber optic outdoor jumper connectors, as well as long-distance transmission cables, is not only due to their standard interface status in 3G, 4G, and WiMAX base station remote radios, but also in Fiber to the Antenna (FTTA) due to their numerous advantages in modern communication networks. The advantages of fiber optic outdoor jumper connectors include high bandwidth, low latency, resistance to electromagnetic interference, long-distance transmission capability, and excellent data security. The combination of fiber optic connectors and long-distance transmission cables provides a reliable and efficient solution for data transmission between base stations and antennas, driving the development of wireless communication technology and providing sustainable support for future 5G and more advanced networks.

The ODC cable components have passed salt spray, vibration, and impact tests and meet the IP67 protection level. They are very suitable for use in industrial, aerospace, and defense applications, and this product has the following advantages when used in scenarios.

1. Tighten the locking mechanism and confirm the long-term reliability of the connection. Provide good connection stability, ensure stable connection of different devices, and reduce maintenance in the later stage. This locking mechanism design makes the connection firm, not easy to loosen, and can withstand vibration and impact under various environmental conditions, ensuring the long-term reliability of the connection.

2. Guiding structure, can be installed blindly, and installation is simple and fast. The fiber optic outdoor patch cable connector is designed with an intelligent guiding structure, allowing installation personnel to accurately insert the connector without visual assistance, simplifying the installation process and improving installation efficiency. This design is suitable for complex on-site working environments with insufficient lighting, reducing the risk of incorrect insertion and ensuring the correctness of connections.

3. Airtight structure: waterproof, dustproof, and corrosion-resistant. The connector adopts an airtight structure design, effectively preventing the invasion of external substances such as moisture and dust, and improving the durability and stability of the connector. Meanwhile, connectors can be used for a long time in humid or corrosive environments, adapting to various harsh weather conditions.

4. Compact in appearance, sturdy and flexible. The connector takes up little space and is suitable for installation scenarios with strict size restrictions. The connector is made of sturdy and durable materials, with good compression and bending resistance, and can withstand a certain degree of external impact, ensuring the long-term reliable use of the connector.

5. Wall sealing design. The connector has a through wall sealing design, which can effectively prevent the influence of the external environment and maintain a stable state inside the connector. Ensure the stability and reliability of the connector.

6. Reduce the number of splices. The connector is designed with a simple and efficient splicing structure, which can effectively reduce errors and losses during the splicing process, improve the success rate and connection quality of splicing. Reduce the risk of system failures and improve the stability and reliability of communication systems.

1. Indoor and outdoor applications. The Outdoor CPRI Armored Fiber Patch Cable can be applied to the connection between indoor and outdoor devices, ensuring the stability of the connection between devices.

2. Connection between outdoor and military communication equipment. It can be applied in outdoor and military communication scenarios that require high equipment requirements, ensuring the stability of data transmission during use.

3. Communication connection between oil fields and mines. Outdoor CPRI Armored Fiber Patch Cable can be used in harsh environments such as oil fields and mines, ensuring real-time and stable data transmission.

4. Remote transmission wireless base station. Can be applied to data transmission and communication between long-distance communication base stations, with low loss, fast data transmission, stable transmission, etc.

5. Video surveillance system. Outdoor CPRI Armored Fiber Patch Cable can be applied in scenarios with high bandwidth and big data transmission. It supports high data transmission bandwidth and can simultaneously transmit large capacity and volume data.

6. Fiber optic sensors. Can be applied in fiber optic sensors. Improve the stability of the device.

7. Railway signal control. Outdoor CPRI Armored Fiber Patch Cable can be applied in scenarios with high vibration and harsh environments such as railway systems. Special joints are used to ensure the stability of the connection.

1.Check the interface type of the devices and ensure compatibility with the device interface.

2.Insert one end of the jumper into the transmit port of the source device, ensuring the plug fits the interface completely; insert the other end of the jumper into the receive port of the target device, again ensuring the plug fits the interface completely.

 3.Ensure that the device is properly powered on and connected correctly. 2. Use an appropriate testing tool or device to verify that the signal is being transmitted correctly.

4.After successful connection, use appropriate fixing devices (such as cable ties or cable channels) to secure the jumper around the device to prevent loosening or disconnection.

5.Periodically check the connection status of the jumper to ensure that the plugs and connectors are not loose or disconnected.

- Choose the appropriate length.

   When using Fiber Optic Outdoor patch cables, choose the appropriate length to ensure reliable connections.

- Ensure correct connections.

  Carefully check that both ends of the Fiber Optic Outdoor patch cable are correctly connected to other devices, and ensure they are properly seated.

- Avoid bending and pulling.

  During installation and use, avoid pulling and excessive bending, as this can damage the patch cable.

- Regularly inspect and clean.

  Regularly inspect the patch cables to ensure they are working properly. Keep the connectors clean and free from contamination.

- Avoid excessive twisting.

  Avoid over-twisting the cables to prevent damage.

- Protect from moisture and high temperatures.

  Store and use Fiber Optic Outdoor patch cables in a dry, normal temperature environment to extend their lifespan.
