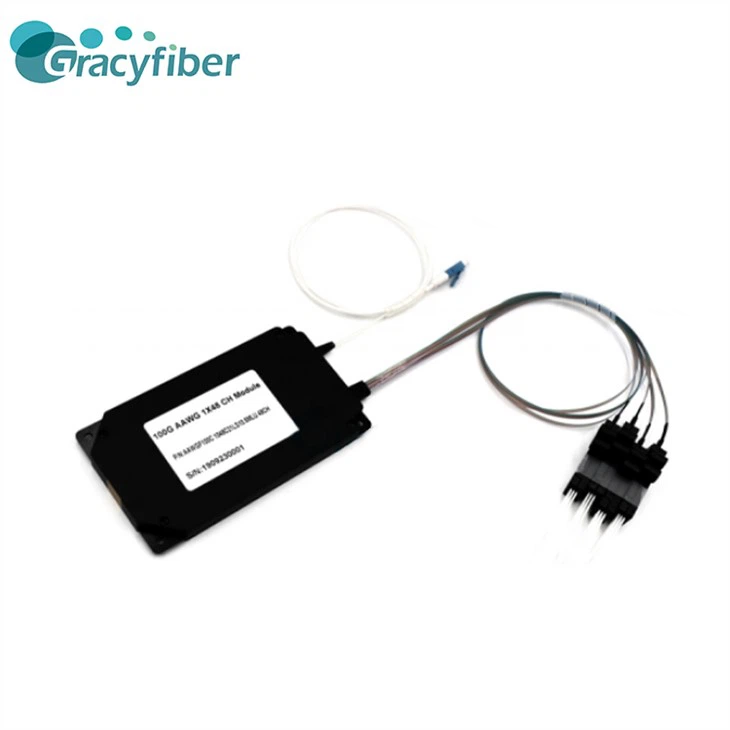

100G 48 Channels Flat Top Passive AWG Module

The 100G 48-channel flat-top passive AWG module is an optical device, which is mainly used in related application scenarios in the fields of optical communication, data center, and optical transmission. It adopts flat-top passive AWG technology, which can disperse the input optical signal to multiple channels, and make the optical signal of each channel have the same bandwidth and flat-top response, so as to realize high-speed, high-bandwidth optical signal transmission.

The module can provide 48 channels, the passband width of each channel can reach 0.1nm, the insertion loss is lower than 5dB, and the wavelength stability is higher than 0.005 nm/℃. It has many channels, large bandwidth, low insertion loss and stable wavelength. Etc. In addition, the module comes in a compact package for easy integration into customers' optical systems.

1. High channel count: 100G 48-channel flat-top passive AWG module provides 48 channels, which can meet the diverse needs of customers and realize high-density optical signal transmission.

2. Flat-top response: The module adopts flat-top passive AWG technology, which can make the optical signal of each channel have the same bandwidth and flat-top response, so as to realize high-speed, high-bandwidth optical signal transmission.

3. High bandwidth: The passband width of each channel reaches 0.1nm, which can meet the requirements of high-speed and high-bandwidth optical signal transmission.

4. Low insertion loss: The insertion loss of this module is lower than 5dB, which can effectively reduce the loss and distortion of optical signals.

5. High wavelength stability: The wavelength stability of the module is higher than 0.005 nm/℃, which can ensure the stability and reliability of the optical signal.

6. Easy to integrate: The module comes in a compact package for easy integration into the customer's optical system.

1. Optical communication: 100G 48-channel flat-top passive AWG module can be used in high-speed, high-bandwidth optical communication systems, supporting application scenarios such as optical fiber communication, data center interconnection, and optical access.

2. Data center: This module can be used for interconnection within the data center to achieve high-speed, high-bandwidth data transmission and improve the transmission efficiency and reliability of the data center.

3. Optical transmission: 100G 48-channel flat-top passive AWG module can be used in long-distance optical transmission systems, supporting application scenarios such as optical fiber communication and optical cable transmission.

4. Optical monitoring: This module can be used in optical monitoring systems to monitor and analyze optical signals and ensure the stability and reliability of optical signals.

1. Installation: Install the module into the optical system, making sure the connection is correct and secure.

2. Configuration: Configure the module according to actual needs, including the number of channels, wavelength, bandwidth and other parameters.

3. Connection: Connect the input optical signal to the input port of the module, and connect the output optical signal to the output port of the module.

4. Test: Test the module, including insertion loss, wavelength stability, bandwidth and other parameters.

5. Adjustment: Make adjustments according to the test results to ensure that the performance of the module meets expectations.

6. Use: Use this module for high-speed, high-bandwidth optical signal transmission, and keep the optical system stable during use.

1. Please check before installation: Before installing the 100G 48-channel flat-top passive AWG module, please check whether the power supply, interface, optical fiber and other related components of the optical equipment are normal to ensure that the equipment is intact.

2. Please pay attention when installing: When installing the module, it needs to be placed on a stable surface to avoid the module being affected by external forces such as swinging or extrusion.

3. Please confirm before use: Before using this module, please confirm whether it is connected to other optical devices correctly to ensure smooth signal transmission.

4. Pay attention to cleaning: Do not use organic solvents, water or other chemical substances to clean the 100G 48-channel flat-top passive AWG module, only professional optical cleaning equipment and cleaning fluid can be used for cleaning.

5. Temperature requirements: When using this module, please pay attention to the ambient temperature to ensure that it works within the specified temperature range, and avoid excessively high or low temperature from affecting its performance.

6. Anti-static: When using this module, please pay attention to prevent the generation and accumulation of static electricity to avoid damage to the module by static electricity.
