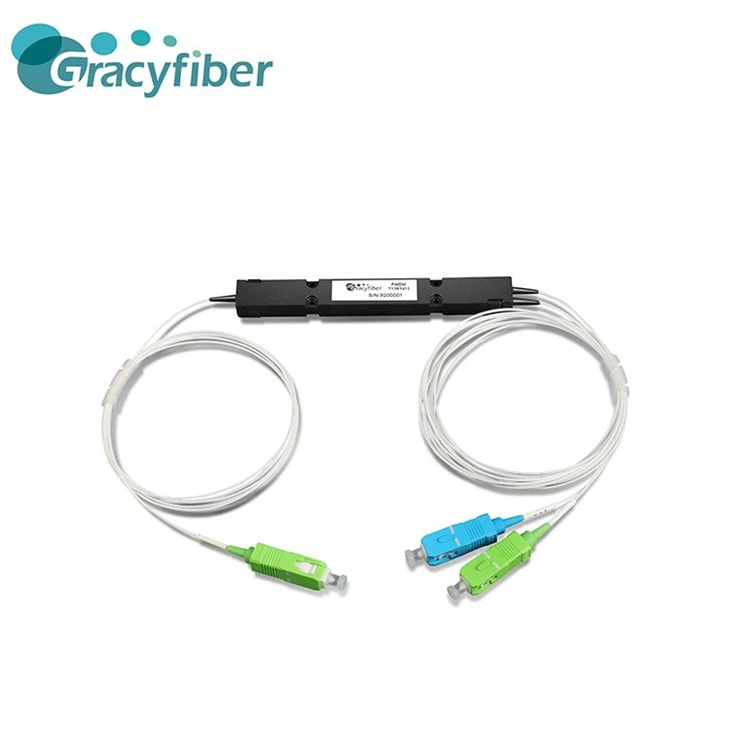

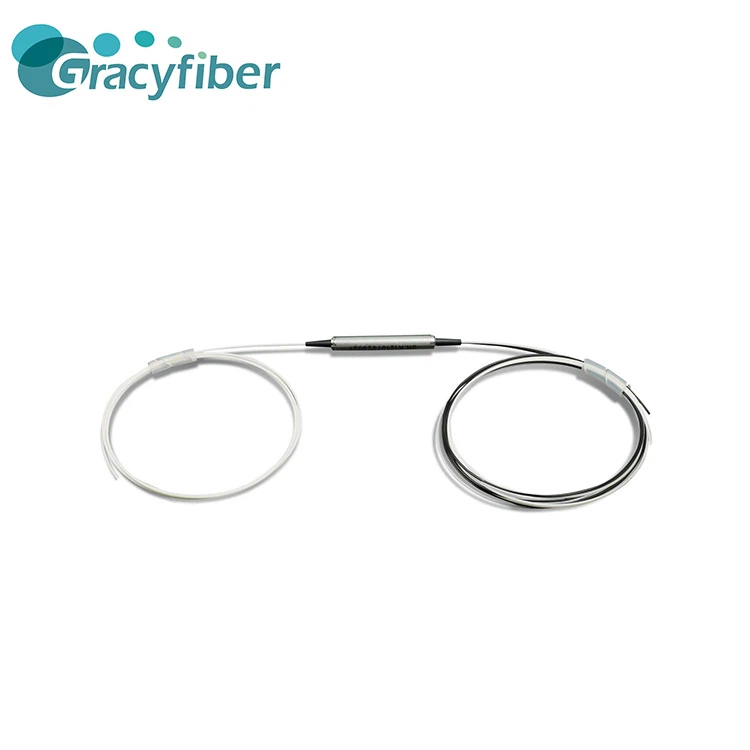

Compact High Isolation FWDM Device

Compact high-isolation FWDM equipment is an optical device. FWDM is its full name in English, representing the abbreviation of "Filter Wavelength Division Multiplexer", and it is called a filter wavelength division multiplexer in Chinese. It can multiplex (or demultiplex) multiple optical signals of different wavelengths onto the same optical fiber, thereby realizing the transmission and distribution of signals in optical communications and optical networks.

Compared with traditional FWDM equipment, compact high-isolation FWDM equipment has smaller volume and higher isolation. It adopts advanced optical technology and precise manufacturing process, which can realize high-density optical path connection in a limited space, saving space and cost. At the same time, it has excellent isolation, which can effectively suppress mutual interference and crosstalk between optical signals, and ensure the quality and stability of signal transmission.

The compact high-isolation FWDM device is suitable for a variety of optical communication and optical network application scenarios, such as optical fiber communication systems, optical fiber sensing systems, and optical fiber CATV networks. It can realize functions such as multiplexing, demultiplexing, distribution and conversion of optical signals, and is one of the indispensable key devices in modern optical communication and optical network.

1. Compact design: Our compact high-isolation FWDM equipment adopts a compact design, which can realize high-density optical connection in a limited space, saving space and cost.

2. High isolation: Our compact high-isolation FWDM equipment has excellent isolation, which can effectively suppress mutual interference and crosstalk between optical signals and ensure signal transmission quality and stability.

3. Wide working wavelength range: Our compact high-isolation FWDM equipment can support multiple wavelength ranges, including 1310nm, 1490nm and 1550nm, etc., which can meet the needs of different optical communication and optical network applications.

4. Low insertion loss: Our compact high-isolation FWDM equipment has low insertion loss, which can reduce signal attenuation and distortion, and improve the quality and reliability of signal transmission.

5. High reliability: Our compact high-isolation FWDM equipment adopts high-quality materials and precise manufacturing process, which has excellent reliability and stability, and can operate stably for a long time in various harsh environments.

6. Easy to install and maintain: Our compact high-isolation FWDM equipment is simple and convenient to install and easy to maintain, which can greatly reduce the user's use and maintenance costs.

1. Optical fiber communication system: Compact high-isolation FWDM equipment can realize the functions of multiplexing, demultiplexing and distribution of optical signals in the optical fiber communication system, thereby improving the transmission efficiency and bandwidth utilization of the optical fiber network.

2. Optical fiber sensing system: Compact high-isolation FWDM equipment can realize signal multiplexing of multiple sensors in the optical fiber sensing system, thereby reducing system complexity and cost, and improving the sensitivity and accuracy of the sensing system.

3. Optical fiber CATV network: Compact high-isolation FWDM equipment can realize the multiplexing and distribution of optical signals in the optical fiber CATV network, thereby improving the transmission efficiency and bandwidth utilization of the CATV network, while reducing system costs and maintenance costs.

4. Optical fiber Internet data center: Compact high-isolation FWDM equipment can realize the multiplexing and distribution of optical signals in the optical fiber Internet data center, thereby improving the transmission efficiency and bandwidth utilization of the data center, while reducing energy consumption and maintenance costs.

5. Optical fiber transmission system: Compact high-isolation FWDM equipment can realize multiplexing and distribution of optical signals in various optical fiber transmission systems, such as optical fiber broadcasting systems, optical fiber medical systems, and optical fiber aerospace systems.

1. First, it is necessary to determine the wavelength range of the optical signal to be multiplexed or demultiplexed, including 1310nm, 1490nm and 1550nm.

2. Input the optical signal that needs to be multiplexed or demultiplexed to the input port of the compact high-isolation FWDM device, and then connect the output port to the optical fiber or other optical devices.

3. Carry out signal testing and quality evaluation to ensure that the performance and quality of compact high-isolation FWDM equipment meet the requirements and meet the needs of users.

4. If necessary, the transmission quality and performance of the signal can be optimized by adjusting the parameters of the compact high-isolation FWDM equipment, such as wavelength selection, insertion loss, isolation, etc.

5. Once the parameters and performance of the compact high-isolation FWDM equipment meet the requirements, it can be put into operation stably to realize functions such as multiplexing, demultiplexing and distribution of optical signals.

1. When using compact high-isolation FWDM equipment, it is necessary to avoid excessive bending of optical fibers, so as not to affect the transmission quality and performance of optical signals.

2. When connecting the optical fiber, it is necessary to avoid excessive stretching of the optical fiber, so as not to damage the optical fiber and optical components.

3. When connecting the optical fiber, it is necessary to avoid excessive twisting of the optical fiber, so as not to affect the transmission quality and performance of the optical signal.

4. The compact high-isolation FWDM equipment is suitable for environments with a temperature range of 0°C to 70°C. It is necessary to avoid overheating and overcooling environments, so as not to affect the performance and life of the equipment.

5. Compact high-isolation FWDM equipment is sensitive to strong magnetic and electric fields, and should be avoided in these environments to avoid affecting the performance and stability of the equipment.

6. When using compact high-isolation FWDM equipment, it is necessary to avoid mechanical shock and vibration, so as not to damage the equipment and affect the transmission quality and performance of optical signals.

7. When storing and maintaining compact high-isolation FWDM equipment, it is necessary to pay attention to the correct method and environment, and keep the equipment dry, clean and dust-proof to prolong the life and stability of the equipment.
