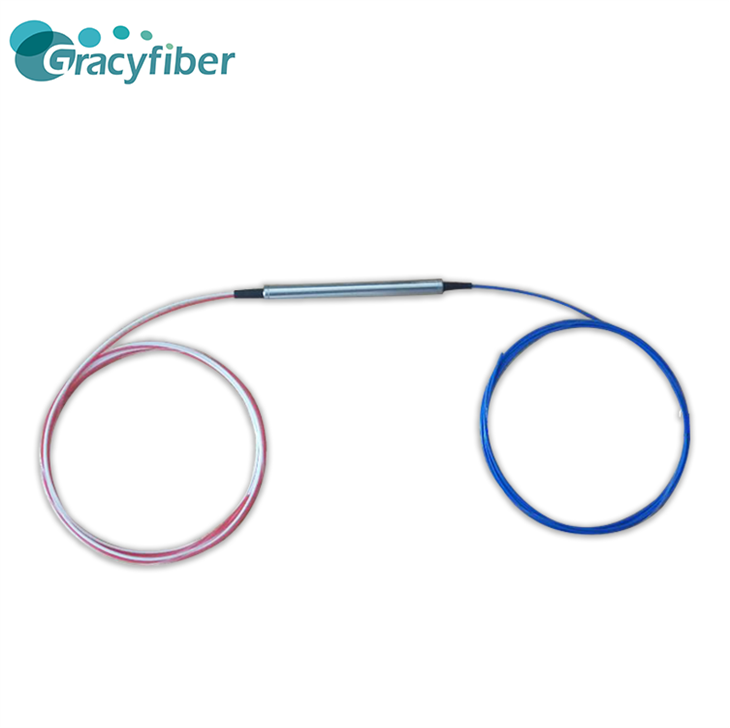

Low Loss Polarization Maintaining Optical Circulator

  A low-loss polarization-maintaining optical circulator is an optical device that is mainly used for optical signal transmission and processing. It can transmit the input optical signal along the ring optical path, and maintain the stability and accuracy of its optical properties during the transmission process. The device usually consists of a pair of couplers and two fiber optic rings, one of which is called the master ring and the other is called the slave ring. After the optical signals have been transmitted through the master ring and the slave ring for many times, they will be recoupled back and form a stable output signal.

The "low loss" in the name of the low-loss polarization-maintaining optical circulator means that its insertion loss is small, that is, the energy loss of the optical signal during the internal transmission of the device is small; "polarization-maintaining" means that the polarization-maintaining performance of the device is better, that The optical signal can maintain the original polarization state during transmission, and will not be distorted or shifted by the external environment; "circulator" means that the device uses a ring optical path for signal transmission and processing.

1. Low insertion loss: The device uses low-loss optical fiber and high-quality optical components, and the insertion loss is as low as 0.2dB, which ensures the high efficiency and stability of optical signal transmission.

2. High polarization maintenance: the device has extremely high polarization maintenance performance, and the degree of polarization maintenance can reach more than 60dB, which can maintain the accuracy and stability of optical signals and avoid signal distortion or offset.

3. High stability: The device adopts advanced optical design and technology, has extremely high stability and reliability, and can work stably in different environments and applications.

4. High reliability: The optical components of the device have high precision and excellent processing technology, and can work stably during long-term use with high reliability.

5. Easy to integrate: the device is small in size and light in weight, and is easy to integrate into various optical systems, providing convenience for users.

1. Optical communication: In optical fiber communication systems, low-loss polarization-maintaining optical circulators can maintain the stability and accuracy of optical signals and improve the transmission distance and rate of optical fiber communication.

2. Optical sensing: In optical sensing systems, low-loss polarization-maintaining optical circulators can achieve high-precision optical signal detection and measurement, which has important application value for optical sensors and optical measurement systems.

3. Quantum communication: In quantum communication systems, low-loss polarization-maintaining optical circulators can achieve efficient quantum state transmission and quantum key distribution, which plays a key role in the realization of quantum communication systems.

4. Optical metrology: In the field of optical metrology, low-loss polarization-maintaining optical circulators can achieve high-precision optical signal measurement and detection, providing reliable performance guarantee for optical metrology systems.

5. Optical imaging: In the field of optical imaging, low-loss polarization-maintaining optical circulators can improve the accuracy and definition of imaging, and provide important support for high-definition imaging and high-resolution imaging.

1. Installation: Install the low-loss polarization-maintaining optical circulator in the optical system, usually need to use fiber optic connectors to connect it with other devices.

2. Calibration: Before using the low-loss polarization-maintaining optical circulator, it needs to be calibrated to ensure its stable and accurate performance. Calibration with optical test equipment is usually required, and adjustments are made according to the actual situation.

3. Signal input: Input the optical signal to be transmitted into the low-loss polarization maintaining optical circulator, which can be input through optical fiber connector or other optical interface.

4. Signal transmission: Under the action of the low-loss polarization-maintaining optical circulator, the optical signal is transmitted along the ring optical path, and the stability and accuracy of its optical properties are maintained during the transmission process.

5. Signal output: After optical signals are transmitted multiple times, they will be recoupled back and form a stable output signal. The output signal can be connected to other optics via fiber optic connectors or other interfaces.

6. Inspection and adjustment: In the process of using the low-loss polarization-maintaining optical circulator, its performance needs to be continuously inspected and adjusted to maintain its stability and efficiency.

1. Inspection before installation: Before installing the low-loss polarization-maintaining optical circulator, it is necessary to check whether the device is intact and compatible with other devices.

2. Clean environment: Before using the low-loss polarization-maintaining optical circulator, it is necessary to ensure that the use environment is clean and tidy to prevent dust and impurities from entering the device.

3. Avoid shock: When using and transporting the low-loss polarization-maintaining optical circulator, it is necessary to avoid strong shock and vibration to prevent the device from being damaged.

4. Avoid excessive temperature: low-loss polarization-maintaining optical circulators need to be used within a suitable temperature range, and avoid exposure to excessively high temperature environments, otherwise device performance and life will be affected.

5. Avoid excessively high power: When using a low-loss polarization-maintaining optical circulator, it is necessary to avoid inputting excessively high optical power, otherwise it will cause damage to the device.

6. Avoid bending optical fibers: Low-loss polarization-maintaining optical circulators need to be used in conjunction with optical fiber connectors, and it is necessary to avoid bending optical fibers, otherwise it will affect the transmission of optical signals and device performance.

7. Regular maintenance: The low-loss polarization-maintaining optical circulator needs regular maintenance and cleaning to ensure its performance and stability.
