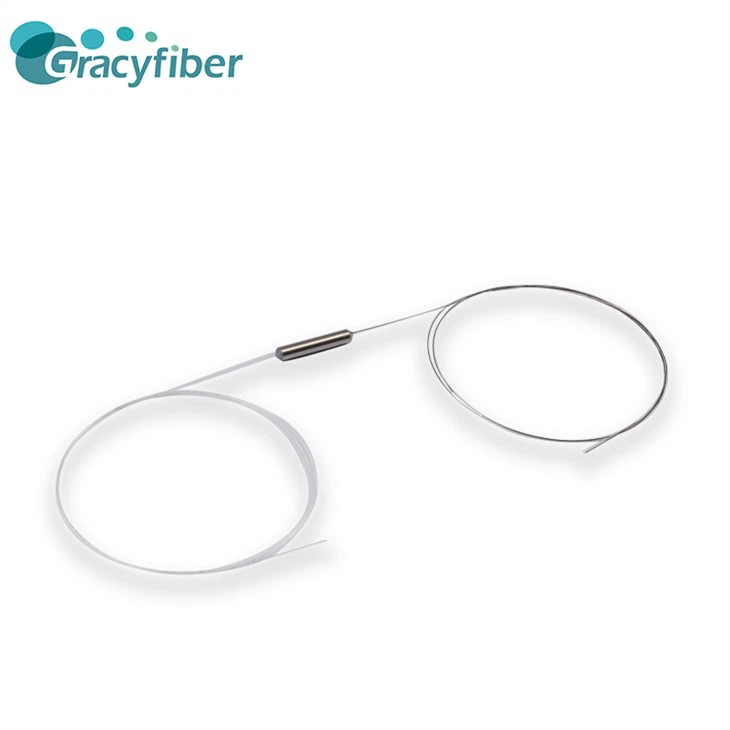

1550nm Polarization Maintaining Bandpass Filters

  ↵1550nm polarization maintaining bandpass filter is an optical filter, mainly used for light wave separation and filtering applications in optical systems such as optical communications, lasers, and sensors. It can selectively pass through certain wavelengths of optical signals while blocking other wavelengths of optical signals. The optical filter has polarization maintaining performance, that is, it can maintain the polarization state of the optical signal, and improve the accuracy and stability of signal transmission of the optical system.

The 1550nm polarization maintaining bandpass filter has a center wavelength of 1550nm and is suitable for optical signal filtering within the 1550nm wavelength range. Its advantages include high transmittance, low loss, high polarization maintaining performance and high stability, etc. It is an indispensable and important part of the optical system.

1. Central wavelength: The central wavelength of the 1550nm polarization maintaining bandpass filter is 1550 nanometers, which is suitable for optical signal filtering within the wavelength range of 1550nm.

2. Polarization-maintaining performance: The 1550nm polarization-maintaining bandpass filter has polarization-maintaining performance, that is, it can maintain the polarization state of the optical signal and improve the accuracy and stability of signal transmission in the optical system.

3. High transmittance: The transmittance of the 1550nm polarization maintaining bandpass filter is as high as 90%, which can effectively transmit the optical signal of the target wavelength and improve the signal transmission efficiency of the optical system.

4. High reflectivity: The reflectivity of the 1550nm polarization maintaining bandpass filter is lower than 0.5%, which can effectively block optical signals of other wavelengths and improve the signal separation effect of the optical system.

5. High stability: 1550nm polarization maintaining bandpass filter has high stability and can maintain stable filtering performance under different temperature and humidity conditions.

1. Optical communication: 1550nm polarization-maintaining bandpass filter can be used for wavelength division multiplexing and wavelength division separation in optical fiber communication systems, filtering out optical signals of other wavelengths, and improving transmission efficiency and quality.

2. Laser: 1550nm polarization maintaining bandpass filter can be used for light wave separation and filtering in the laser system to ensure the quality of laser signal transmission at the target wavelength.

3. Sensor: The 1550nm polarization maintaining bandpass filter can be used for light wave separation and filtering in the sensor to improve the signal detection and measurement accuracy of the sensor.

4. Optical instruments: 1550nm polarization-maintaining bandpass filters can be used for light wave separation and filtering in optical instruments to improve the detection and measurement accuracy of the instrument.

5. Scientific research experiment: 1550nm polarization maintaining bandpass filter can be used for light wave separation and filtering in scientific research experiment, improving the reliability and accuracy of the experiment.

1. Installation: Install the 1550nm polarization-maintaining band-pass filter at the corresponding position in the optical system, pay attention to prevent excessive bending and stretching of the optical fiber, and avoid damage to the filter.

2. Connection: Connect the optical fiber to the input port and output port of the 1550nm polarization-maintaining bandpass filter, pay attention to keep the optical fiber clean and stable to avoid optical loss and signal interference.

3. Switch: Turn on the switch of the optical system to start the signal transmission and filtering functions.

4. Debugging: Debug the filtering characteristics of the 1550nm polarization-maintaining bandpass filter according to actual needs, including parameters such as bandwidth, transmittance, reflectivity, and polarization-maintaining performance.

5. Maintenance: Regularly clean and maintain the 1550nm polarization-maintaining bandpass filter to avoid dust, dirt and other impurities from affecting the filtering effect and optical performance.

1. Inspection before use: Before using the 1550nm polarization maintaining bandpass filter, it is necessary to check whether the appearance of the filter is intact, and whether the port connecting the optical fiber is clean and stable.

2. Avoid bending: When using the 1550nm polarization maintaining bandpass filter, it is necessary to avoid excessive bending and stretching of the optical fiber, so as not to affect the performance and life of the filter.

3. Avoid collision: When handling and installing the 1550nm polarization maintaining bandpass filter, it is necessary to avoid collision and falling to avoid damage to the filter.

4. Stable connection: When connecting the optical fiber, it is necessary to keep the optical fiber clean and stable to avoid optical loss and signal interference.

5. Avoid excessive use: When using 1550nm polarization maintaining bandpass filter, it is necessary to avoid excessive use and frequent switching, so as not to affect the performance and life of the filter.

6. Regular cleaning: Regularly clean and maintain the 1550nm polarization maintaining bandpass filter to avoid dust, dirt and other impurities from affecting the filtering effect and optical performance.

7. Pay attention to safety: When using 1550nm polarization maintaining bandpass filter, you need to pay attention to safety to avoid problems such as light damage and signal interference.
