Fan Pigtail Adapter-With Fan Pigtail Connector

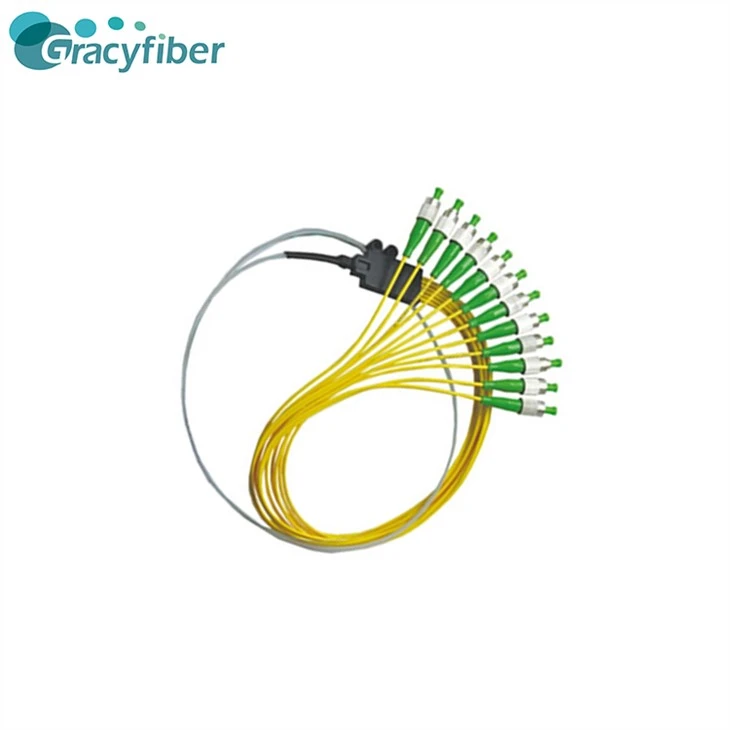

Ribbon Fanout Fiber Optic Pigtail allows users to connect fiber optic adaptor/interface with ribbon cable. The combination of a precision ceramic ferrule of fiber optic connector, reliable fiber and cable performance provides consistent long-term mechanical and optical performance. They are applied for high density application and widely used for Fiber Distribution Frame and Patch Panel in telecommunication, network, CATV, broadcast, security, etc.
- Product Introduction
Fan pigtail adapter cable is a high quality network connection accessory, specially made for users with network connection needs. It is made of high quality materials and features durability, stability and high speed transmission to meet the high requirements of users for network connectivity.
The fan pigtail adapter cable is suitable for a variety of network connection scenarios, including home networks, enterprise networks, data centers, etc. With standardized design and wide compatibility, the product can be perfectly matched with various network devices to provide users with a more stable, fast and efficient network connection experience.
The fan pigtail adapter cable is a cost-effective network connection accessory that provides users with a high-quality network connection experience. If you are looking for a reliable, efficient and easy-to-use network connection accessory, then the fan pigtail adapter cable is the right choice for you.
Product Features
1. High quality material: The fan pigtail adapter cable is made of high quality material, which has excellent durability and stability and can operate stably for a long time.
2. High-speed transmission: The fan pigtail adapter cable adopts high-speed transmission technology, which can realize high-speed and stable data transmission and ensure fast data transmission and accuracy.
3. Multiple specifications: Fan pigtail adapters are available in different specifications and lengths, which can be customized to meet the needs of users in different scenarios.
4. Safe and reliable: The fan pigtail adapter cable is made of high quality materials with good safety performance, which can ensure safe and reliable data transmission.
5. easy to install: fan pigtail adapter cable is easy to install, no need for professional technicians, users can easily complete the installation according to the instructions.
Product Image
Product Applications
1. FTTX and FTTH networks: SC fiber pigtail connectors are commonly used in fiber-to-the-home (FTTX) and fiber-to-the-home (FTTH) networks, which can connect fiber terminal equipment and fiber distribution frames.
2. Cable TV: SC fiber pigtail connectors can be used in cable TV networks to convert optical signals to electrical signals for high definition video transmission.
3. LAN and WAN: SC fiber pigtail connectors can be used in LAN and WAN to provide high-speed and stable data transmission.
4. Industrial, medical, military: SC fiber pigtail connectors can also be used in industrial, medical and military fields to provide reliable data transmission and communication.
Product Parameters
| Insertion loss | ≤0.3dB | Return loss | 50dB ≥55dB ≥60dB ≥35dB |
| Interchangeability | ≤0.2dB | Salt spray | ≤0.2dB |
| Repeatability | ≤0.1dB (1000 times) | High temperature | ≤0.2dB (+85°C 168 hours) |
| Low temperature | ≤0.2dB (-40°C 168hours) | Temperature cycle | ≤0.2dB（-40℃~85℃ 21 cycles 168 hours) |
| Humidity | ≤0.2dB（95% 75°C 168 hours) | Vertex offset | 0~50um |
| Radius of curvature | 7~25mm | Undercut | -50~50mm |
| Durability | ≥1,000 times mating | Tensile strength | ≥70N (2.0mm); ≥40N (0.9mm) |
Instructions For Use
1. First, confirm the interface type of your fan and host computer to ensure that the fan pigtail adapter cable you purchased is compatible with your device.
2. Connect one end of the fan pigtail adapter cable to the fan's connector and the other end to the corresponding connector on the host computer.
3. Make sure all connections are solid and reliable to avoid damage or malfunction of the unit due to loose cables or poor contact.
4. Before powering on the unit, check that the cables are properly connected and make sure that the power to the fan and the host computer is connected and turned on.
Terms Of Use
1. The fan pigtail adapter cable needs to be used at the correct voltage to avoid dangerous situations such as electrical failure or fire. Be sure to confirm the required voltage and current before use, and use a power supply that meets the requirements.
2. Avoid over-stretching or bending the fan pigtail adapter cable to avoid damage to it or to affect its transmission effect.
3. Use the fan pigtail adapter in a dry and ventilated environment, and avoid exposure to direct sunlight or high temperature and humidity to avoid damage to it.
4. In the process of using the fan pigtail adapter, avoid contacting it with sharp objects or hard surfaces to avoid scratching or damaging it.
5. The fan pigtail adapter needs to be cleaned and maintained regularly to ensure its transmission effectiveness and service life. When cleaning, please use a soft dry cloth to gently wipe, avoid using chemical reagents or water to clean directly.
