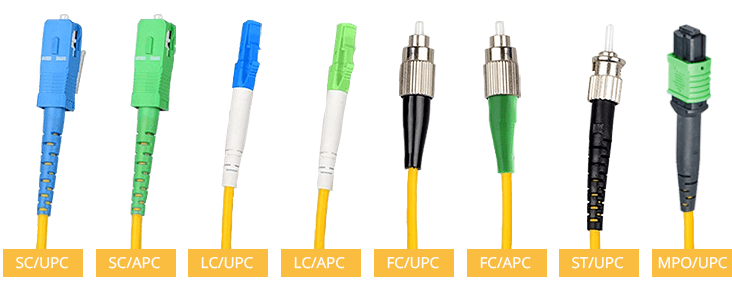

SC/APC Fiber Optic Connector-Dual-Mode Fiber Optic Connector

SC/APC fiber optic connector is a commonly used fiber optic connector with beveled interface and precision ceramic sleeve, which can achieve very low insertion loss and reflection loss. It is compact, very easy to connect and disconnect, and is suitable for singlemode and multimode fiber connections.

The SC/APC fiber optic connector is very simple to connect, just insert the fiber into the connector and rotate the sleeve on the connector to complete the connection. Its connection quality is very stable and can guarantee the transmission quality of optical signal.

1. Low insertion loss: SC/APC fiber optic connectors have low insertion loss because it uses the APC (Angled Physical Contact) contact method, which can effectively reduce reflection loss.

2. High return loss: SC/APC fiber optic connector has high return loss because it has angled contact surface, which can effectively reduce reflection and ensure the quality of signal transmission.

3. Easy installation: SC/APC fiber optic connectors are very easy to install, just insert the fiber into the connector and screw it tightly, no special tools are needed.

4. Durable: SC/APC fiber optic connectors are made of metal housing, which has strong durability and can work stably for a long time in harsh environment.

1. Telecom field: SC/APC fiber optic connectors are widely used in telecom field, such as fiber optic communication, fiber optic broadband, fiber optic access network, etc.

2. Data center: SC/APC fiber optic connectors are also widely used in data centers, such as interconnection between servers, interconnection between storage devices, etc.

3. medical field: SC/APC fiber optic connectors are also used in the medical field, such as medical imaging equipment, medical information systems, etc.

4. Industrial field: SC/APC fiber optic connectors are also used in industrial fields, such as automation control systems, industrial monitoring systems, etc.

1. Preparation: First of all, you need to prepare SC/APC fiber optic connector, fiber, light source and optical power meter and other equipment.

2. Cut the fiber: cut the fiber to be connected and polish it with fiber sandpaper to make sure the end face of the fiber is smooth.

3. Install the connector: open the SC/APC fiber connector, insert the cut fiber into the connector, and screw the connector to ensure that the connector is tightly connected to the fiber.

4. Connect the light source and optical power meter: connect the light source and optical power meter to the other end of the connector, start the light source and adjust the output power, use the optical power meter to measure the output power.

5. Test the connection quality: by testing the output power and return loss and other parameters, determine whether the connection quality meets the requirements. If the connection quality is not up to standard, you can regrind the fiber end face and reconnect.

1. Make sure the connector and fiber match: SC/APC fiber optic connector is a special connector which needs to be used with APC (Angled Physical Contact) fiber. Before using SC/APC fiber connector, please make sure your fiber is also APC type.

2. Pay attention to the connector cleaning: Because the connection end face of SC/APC fiber optic connector is very fine, so you need to pay special attention to the connector end face cleaning during the use. It is recommended to use professional connector cleaning tools and cleaners, and avoid using fingers or other unclean objects to touch the connector end face.

3. attention to the protection of the connector: when the connector is not in use, you should use a protective cover or protective cap to protect the connector end face to avoid dust, dirt and other impurities into the connector end face, affecting the quality of the connection.

4. pay attention to the connector disassembly: when you need to disassemble the SC/APC fiber optic connector, you should first clean the connector end face, and then use professional disassembly tools to disassemble, avoid using too much force or unsuitable tools to cause damage to the connector.

5. Pay attention to the connector installation: When installing SC/APC fiber optic connectors, make sure the connector end face is precisely aligned with the fiber end face, and apply proper pressure to ensure the connection quality.
