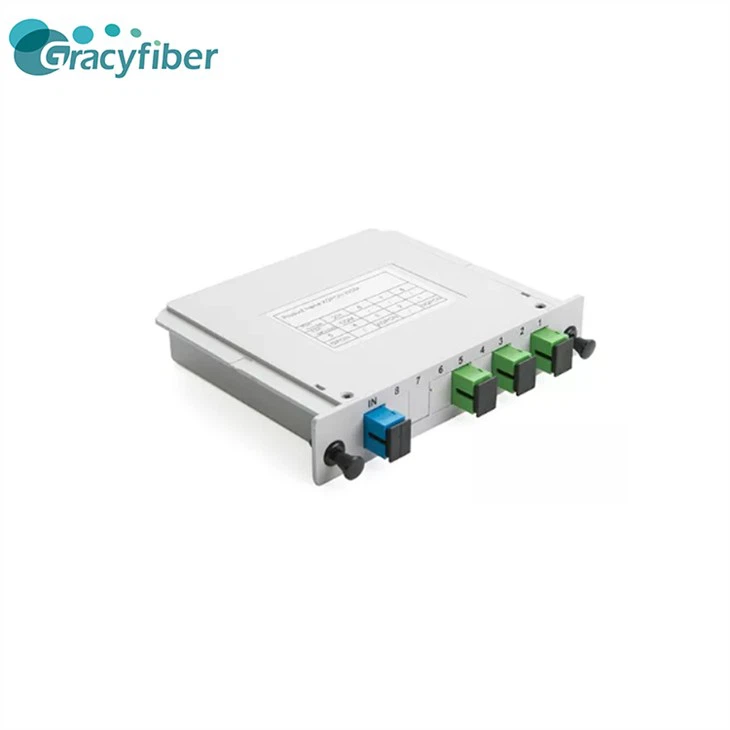

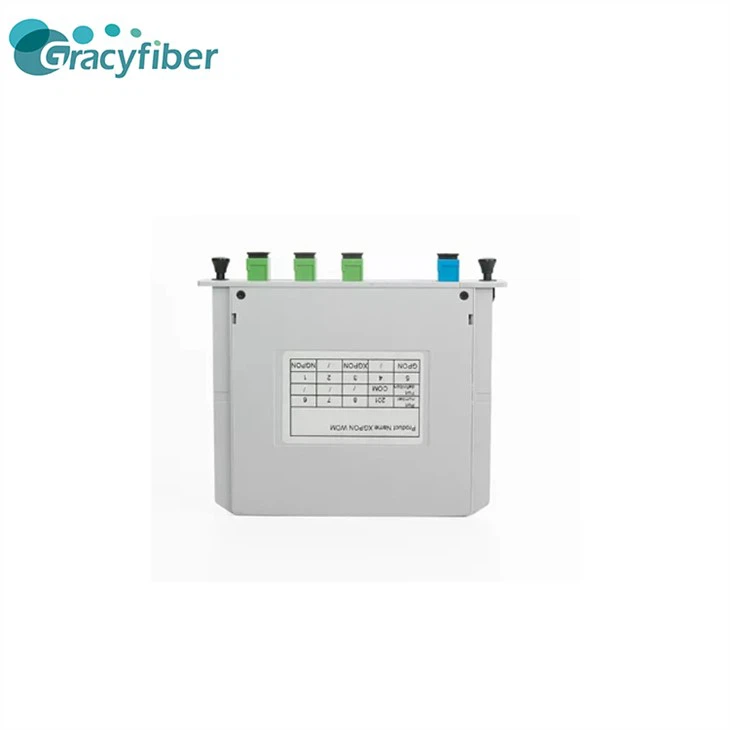

High-Isolation WDM X PON Module

The isolated WDM X PON wavelength division module is a high-quality optical communication device, which can realize the separation and transmission of various optical signals, and is widely used in various optical communication networks. The product adopts advanced wavelength division multiplexing technology, which can realize high-isolation and low-loss signal transmission, and supports a variety of optical fiber connection methods, which is convenient for users to flexibly expand and upgrade the network.

High isolation WDM X PON wavelength division module is a kind of optical communication equipment, which is based on the combination of optical passive network (PON) technology and wavelength division multiplexing (WDM) technology, and can realize the separation and transmission of various optical signals. This module can multiplex and separate optical signals of different wavelengths, so as to transmit multiple different optical signals on the same optical fiber.

The module can also transmit optical signals to different terminal devices to realize the expansion and upgrade of the optical network. This product is mainly used for transmission and distribution in optical communication networks. It has the characteristics of high isolation, low loss, and strong flexibility, and is suitable for various application scenarios of optical communication networks.

1. High isolation: This product adopts the combination of high-quality WDM technology and PON technology, which can realize high isolation and low loss signal transmission, effectively avoid signal interference and attenuation, and ensure signal quality and transmission distance.

2. Multi-signal multiplexing: This product can realize multiplexing and separation of optical signals of different wavelengths, so as to transmit multiple different optical signals on the same optical fiber, and improve the bandwidth and transmission capacity of the optical communication network.

3. Strong flexibility: This product supports multiple fiber optic connection methods, and can be flexibly configured and deployed according to the actual needs of users, which is convenient for users to expand and upgrade the network.

4. Low loss: This product has the characteristics of low insertion loss and high return loss, which can ensure the transmission quality and transmission distance of the signal.

5. High stability: The product adopts high-quality components and advanced manufacturing technology, has high stability and reliability, and can meet the needs of users in different application scenarios.

1. Optical fiber communication network: This product can realize high-speed, high-capacity optical signal transmission, suitable for transmission and distribution in optical fiber communication network, and can improve the stability and reliability of the network.

2. Data center network: This product can be used for network connection and expansion of data centers, and can meet the high-density and high-capacity transmission requirements of data center networks.

3. Cable TV network: This product can realize the signal distribution and transmission in the cable TV network, and improve the transmission quality and stability of the network.

4. Medical field: This product can be used for image transmission and data transmission in the medical field, and can meet the high-speed and high-definition transmission requirements of medical equipment.

5. Military communication: This product has high confidentiality and stability, and can be used for data transmission and communication in the field of military communication.

1. Before using this product, it is necessary to determine the topology of the network, including optical fiber connection mode, transmission distance, terminal equipment, etc.

2. According to actual needs, it is necessary to determine the configuration of optical signals of different wavelengths to ensure multiplexing and separation of optical signals.

3. Insert the optical fiber into the interface of the high-isolation WDM X PON wavelength division module to ensure stable and reliable optical fiber connection and avoid loss of optical signal.

4. Connect the optical signals of different wavelengths to the terminal equipment to ensure that the optical signal transmission between the terminal equipment and the WDM module is normal.

5. After using the product, test verification is required to ensure the transmission quality and stability of the optical signal to ensure the normal operation of the network.

1. Before using this product, it is necessary to determine the topology of the network, including optical fiber connection mode, transmission distance, terminal equipment, etc.

2. According to actual needs, it is necessary to determine the configuration of optical signals of different wavelengths to ensure multiplexing and separation of optical signals.

3. Insert the optical fiber into the interface of the high-isolation WDM X PON wavelength division module to ensure stable and reliable optical fiber connection and avoid loss of optical signal.

4. Connect the optical signals of different wavelengths to the terminal equipment to ensure that the optical signal transmission between the terminal equipment and the WDM module is normal.

5. After using the product, test verification is required to ensure the transmission quality and stability of the optical signal to ensure the normal operation of the network.
