Machine frame appearance description 1U Machine frame 1U Front panel 1U Side panel 1U Back panel Explain： ①NMU card slot ②Business card slot,maximum support four business cards, our business cards all can be mixed interpolation and hot swappable ③Fan slot,Support for fan hot swap and independent...
- Product Introduction
Machine frame appearance description
1U Machine frame
1U Front panel
1U Side panel
1U Back panel
Explain：
①NMU card slot
②Business card slot,maximum support four business cards, our business cards all can be mixed interpolation and hot swappable
③Fan slot,Support for fan hot swap and independent replacement
④Scalable lug
⑤Lug instillation position
⑥Side vent
⑦Power 1 slot,can plug in AC power supply or DC power supply, support hot swap
⑧Power 2 slot,can plug in AC power supply or DC power supply, support hot swap
⑨Grounding screw
2U Machine frame
2U Front panel
2U Side panel
2U Back panel
Explain：
①NMU card slot
②Expansion slot,can plug in eight Ethernet switch cards or other cards
③Business card slot,maximum support eight business cards,all our business card can be mixed interpolation,hot swappable
④Fan slot,Support for fan hot swap and independent replacement
⑤Scalable lug
⑥Lug instillation position
⑦Side vent
⑧Power 1 slot,can plug in AC power supply or DC power supply, support hot swap
⑨Power 2 slot,can plug in AC power supply or DC power supply, support hot swap
⑩Grounding screw

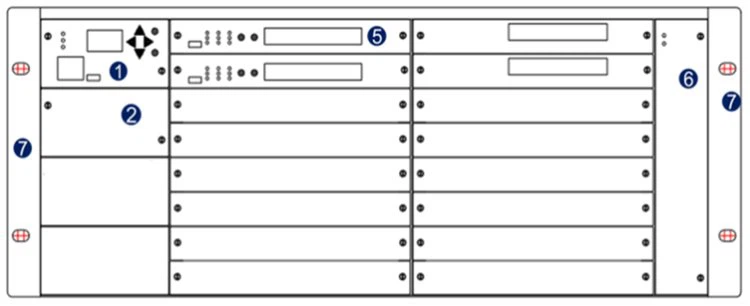

4U Machine frame
4U Front panel
4U Back panel
Explain：
①NMU card slot
②Expansion slot,can plug in eight Ethernet switch cards or other cards
③Power 1 slot,can plug in AC power supply or DC power supply, support hot swap
④Power 2 slot,can plug in AC power supply or DC power supply, support hot swap
⑤Business card slot,maximum support sixteen business cards,all our business card can be mixed interpolation,hot swappable
⑥Fan slot,Support for fan hot swap and independent replacement
⑦Scalable lug
Machine frame parameter
Parameters | Unit | Specifications | |
Environmental | Working temperature | ℃ | -10~ 60℃ |
Storage temperature | ℃ | -40℃~ 85℃ | |
parameter | Relative temperature | ℃ | 5% ~ 95% No condensation |
Size | 1U | mm | 482.6W×300D×44.5H |
2U | mm | 482.6W×300D×86H | |
4U | mm | 482.6W×300D×176H | |
Power Supply | AC | V | 100~240,50~60hz |
DC | V | 36~72 | |
Consumption | 1U | W | ＜ 50（Max） |
2U | W | ＜100（Max） | |
4U | W | ＜200（Max） | |
