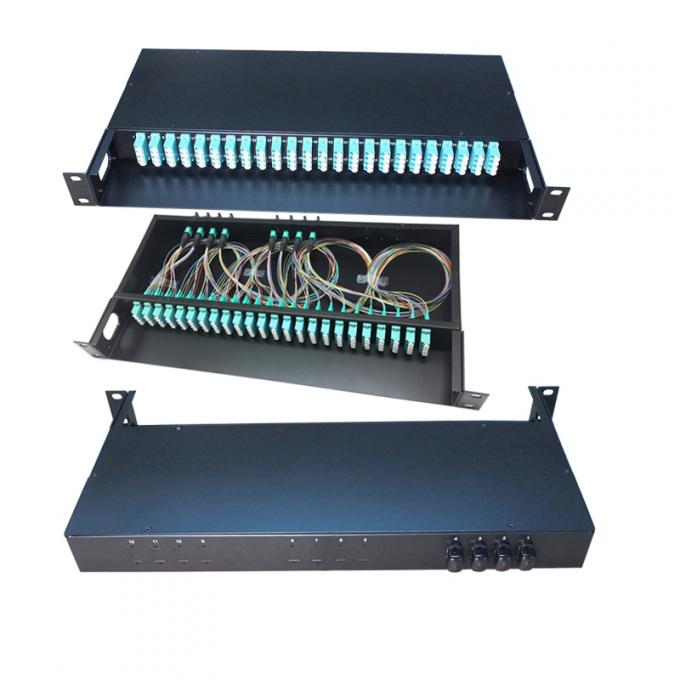

FTTH Fiber Optic Distribution Frame-48 Core Distribution Box

FTTH fiber optic distribution frame is a kind of wiring equipment used in fiber-to-the-home (FTTH) network, which is one of the important equipment to bring fiber optic signals from the backbone line to the user's home. This product is mainly used for distributed management and maintenance of fiber optic network, which can effectively improve the reliability and stability of the network.FTTH fiber optic distribution frame has the advantages of compact structure, easy installation and simple operation, which is suitable for the construction of fiber optic access network in residential communities, commercial buildings, schools and other places.

1. strong flexibility: the product has a modular design, which can be combined and expanded according to the needs, so that it is convenient for users to make flexible configurations according to actual needs;

2. easy installation: FTTH fiber optic distribution frame adopts lightweight design, easy installation, no need for professional staff to install, users can complete by themselves;

3. fiber protection: the product is made of high-strength materials, with good corrosion resistance and dust and water resistance, which can effectively protect the fiber;

4. high space utilization: FTTH fiber optic distribution frame adopts compact design, which can effectively utilize space and improve space utilization;

5. easy maintenance: the product is equipped with fiber label, which is convenient for users to carry out fiber identification and maintenance management.

1. Home broadband access: With the increasing demand for home broadband, FTTH fiber optic distribution frame becomes an important equipment for home broadband access, which can realize the transmission and distribution of broadband signals and improve the stability and speed of home network.

2. enterprise network construction: enterprise network construction requires a large number of fiber optic access, FTTH fiber optic distribution frame can be an important part of enterprise network construction, to achieve the distribution and management of fiber optic, improve the stability and efficiency of enterprise network.

3. school network construction: with the continuous promotion of education informatization, school network construction is also becoming more and more important, FTTH fiber optic distribution frame can be used as an important part of school network construction to realize the distribution and management of optical fiber and improve the stability and speed of the school network.

4. community network construction: with the continuous promotion of community informatization, community network construction is also becoming more and more important, FTTH fiber optic distribution frame can be used as an important equipment for community network construction to achieve fiber distribution and management, and improve the stability and speed of the community network.

5. other fields: FTTH fiber optic distribution frame can also be applied to network construction in hospitals, banks, transportation and other fields to realize fiber optic distribution and management and improve the stability and efficiency of the network.

1. Determine the installation location: first of all, you need to determine the installation location of FTTH fiber optic distribution frame, generally choose the location next to the fiber optic entry machine or the end of the indoor fiber optic cable line.

2. install the bracket: fix the bracket of FTTH fiber distribution frame on the installation location and ensure the stability and solidity of the bracket.

3. install the wiring frame: install the FTTH fiber optic wiring frame on the bracket and ensure the level and verticality of the wiring frame.

4. Connect fiber optic cable: connect fiber optic cable to FTTH fiber optic distribution frame and ensure the solidity and stability of the connection.

5. assign fiber: assign fiber to different interfaces, and identify the purpose and fiber number of each interface.

6. maintenance management: regularly inspect and maintain FTTH fiber optic distribution frame, clean the fiber optic interface and distribution frame to ensure the normal operation of the fiber.

1. Before installation, you need to read the product manual carefully to understand the characteristics and usage of the product.

2. When installing, you need to ensure that the fiber optic cable is connected correctly and the bending radius of the fiber optic must not be less than the specified value.

3. When installing, you need to pay attention to the tension of the fiber optic cable, which should not exceed the specified value, so as not to damage the fiber optic cable.

4. After installation, the fiber optic cable needs to be tested to ensure that the connection quality is good and free of loss and reflection.

5. In the process of use, the fiber optic cable needs to be inspected and maintained regularly to maintain the connection quality.

6. When replacing the equipment, you need to pay attention to the compatibility of the equipment to avoid affecting the connection quality.

7. In the process of use, attention needs to be paid to prevent dust and moisture from entering the fiber optic cable connector to avoid affecting the connection quality.

8. When disassembling the fiber optic cable, special tools need to be used to avoid damaging the cable and connectors.
